k8s企业级DevOps实践-Kong in Kubernetes

Kong介绍

本文介绍将 Kong 微服务网关作为 Kubernetes 集群内部业务项目之间通讯的最佳实践，之前写过一篇文章使用 Nginx Ingress Controller 作为集群统一的流量入口：使用 Kubernetes Ingress 对外暴露服务，但是相比于 Kong Ingress Controller来说，Kong 支持的功能更加强大，更适合微服务架构：

拥有庞大的插件生态，能轻易扩展 Kong 支持的功能，比如 API 认证，流控，访问限制等；
Kong 服务本身和 Admin 管理 API 都集成在一个进程，通过端口区分两者，简化了部署的复杂度；
Kong 节点的配置统一持久化到数据库，所有节点通过数据库共享数据，在 Ingress 更新后能实时同步到各个节点，而 Nginx Ingress Controller 是通过重新加载机制响应 Ingress 更新，这种方式代价比较大，可能会导致服务的短暂中断；
Kong 有成熟的第三方管理 UI 和 Admin 管理 API 对接，从而能可视化管理 Kong 配置。

kong是一个云原生的、高性能的、可扩展的API网关(分布式微服务抽象层)。 kong基于openresty, nginx+lua模块开发，其核心价值就是高性能和可扩展性。

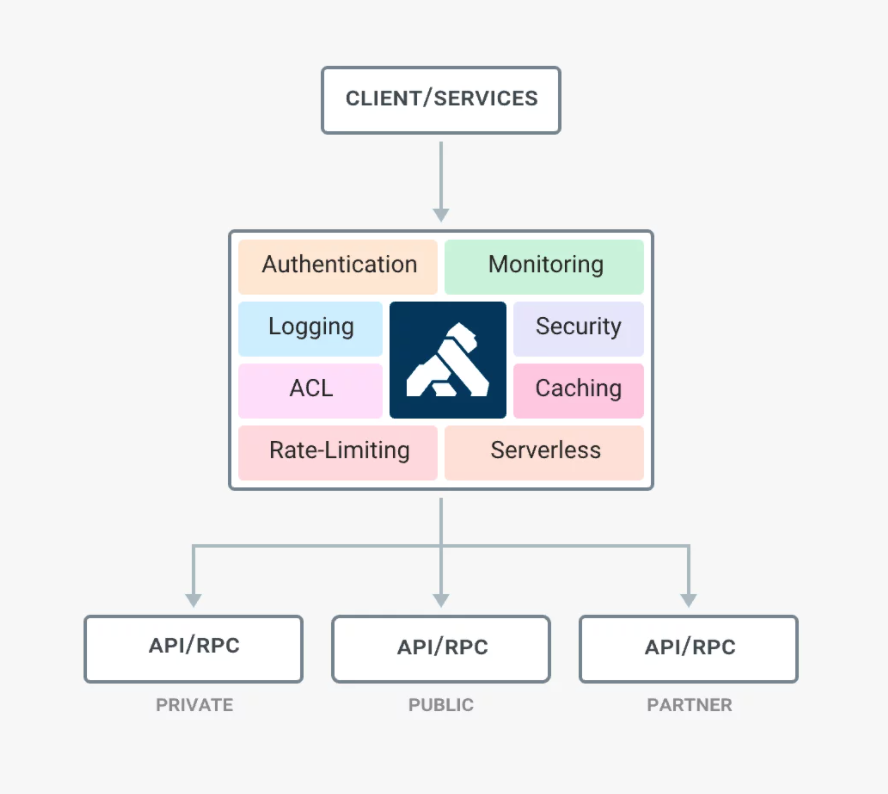

kong的基本运行情况如下图所示，kong可以通过充当微服务请求的网关，同时通过插件提供负载均衡、日志记录、身份认证、速率限制(rate-limiting)、转换(transformations)等功能。

kong
客户端请求到达kong网关后，经过一系列的插件处理之后才会将请求转发给指定的后端服务。

kong的主要组件包含:

Kong Server: 基于nginx的服务器，用来接收API请求
PostgreSQL或Apache Cassandra: 用来存储数据

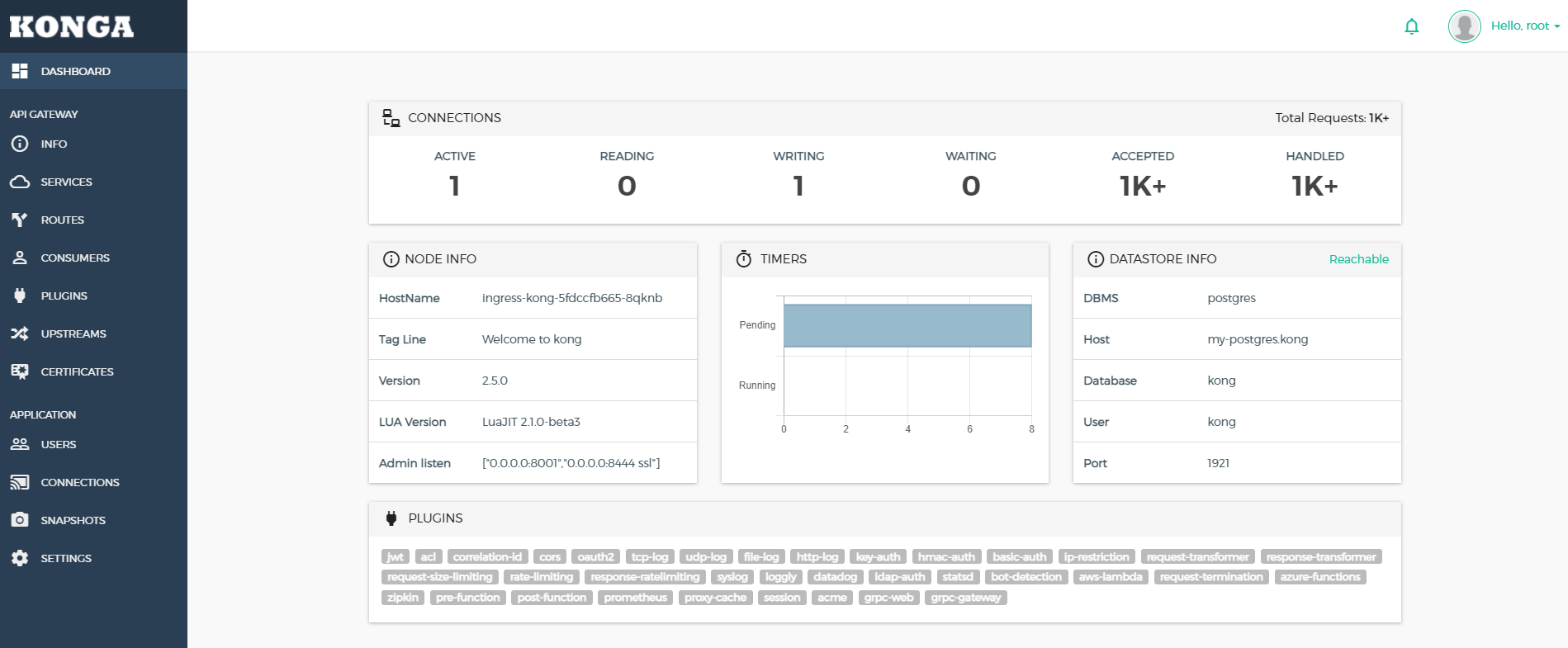

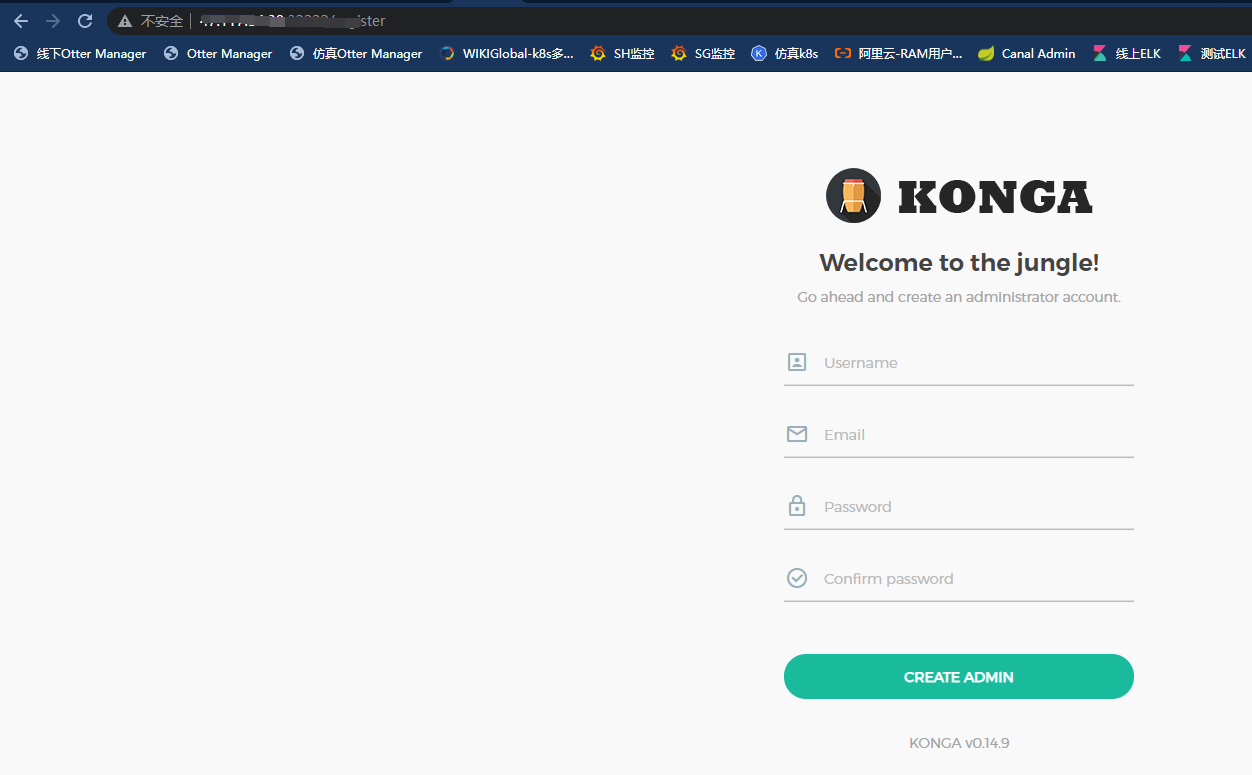

konga: 第三方开源的图形化管理工具，支持kong的最新版本(因为kong的社区版不提供dashboard)
kong的三大基础特性:

可扩展性: 可以通过添加更多服务器进行横向扩展
模块化: 通过添加插件进行扩展其插件可定制开发
云原生: 可在任何基础架构上运行，如云环境或内部网络，对云原生、kubernetes天然支持

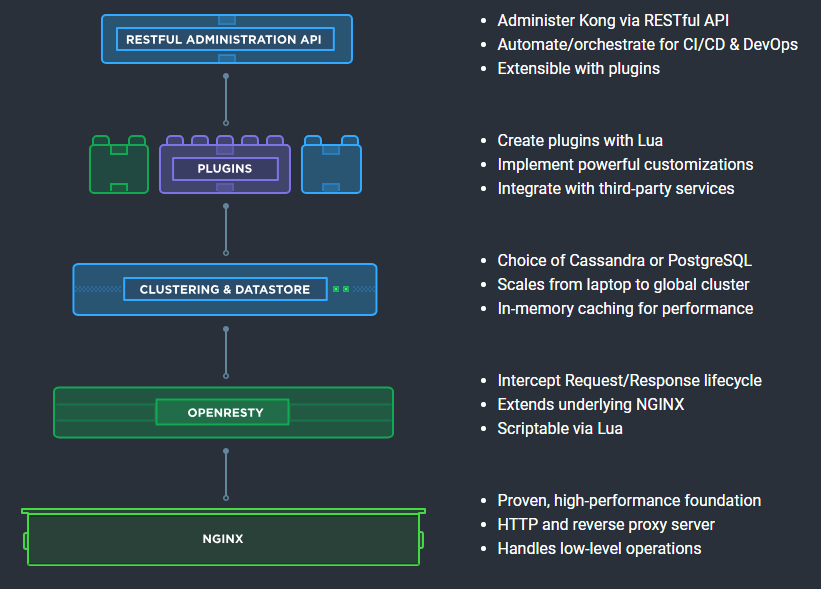

Kong依赖的技术

Kong部署在Nginx和Apache Cassandra或PostgreSQL等可靠技术之上，并提供了易于使用的RESTful API来操作和配置系统。下面是Kong的技术逻辑图。基于这些技术，Kong提供相关的特性支持：

Nginx
- 经过验证的高性能基础；
- HTTP和反向代理服务器；
- 处理低层级的操作。
OpenRestry
- 支持Lua脚本；
- 拦截请求/响应生命周期；
- 基于Nginx进行扩展。
Clustering&Datastore
- 支持Cassandra或PostgreSQL数据库；
- 内存级的缓存；
- 支持水平扩展。
Plugins
- 使用Lua创建插件；
- 功能强大的定制能力；
- 与第三方服务实现集成。
Restful Administration API
- 通过Restful API管理Kong；
- 支持CI/CD&DevOps；
- 基于插件的可扩展。

kong

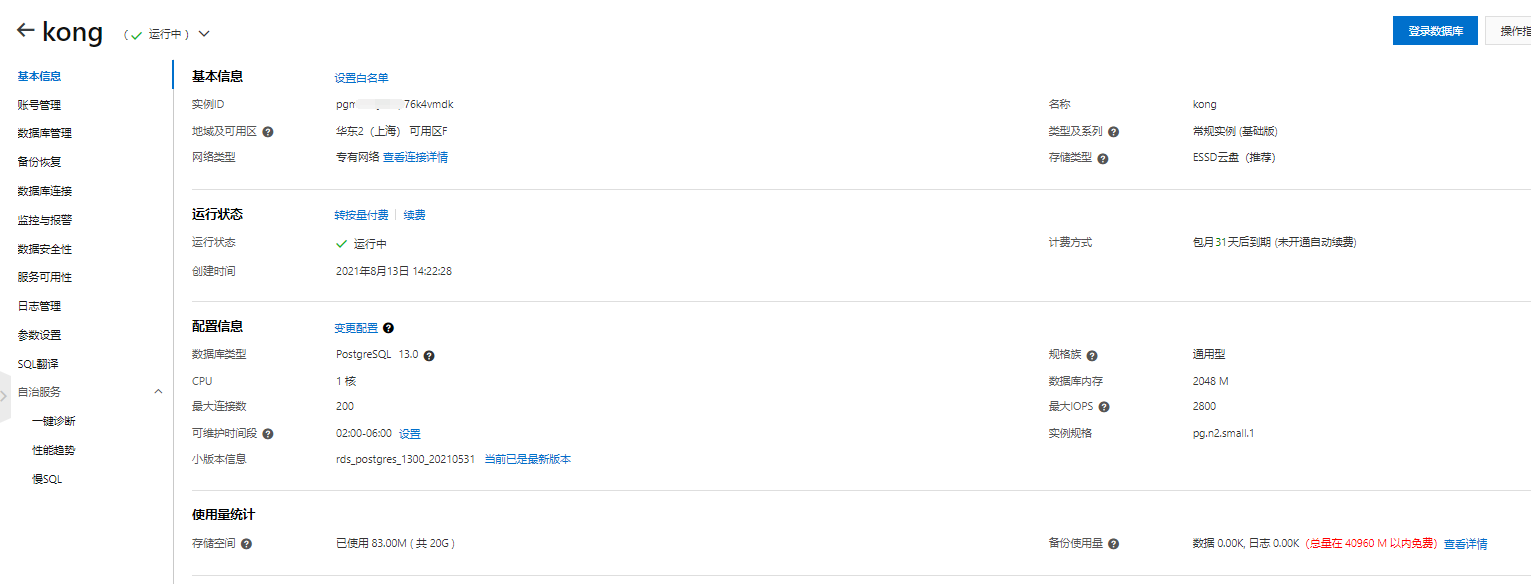

线上购买阿里云POSTGRES数据库

POSTGRES

创建用户及kong数据库

1	create database kong owner kong;

映射集群外部数据库

IP方式

apiVersion: v1
kind: Service
metadata:
  name: my-postgres
  namespace: kong
spec:
  type: ClusterIP
  ports:
    - port: 5432
      protocol: TCP
      targetPort: 1921
---
apiVersion: v1
kind: Endpoints
metadata:
  name: my-postgres
  namespace: kong
subsets:
  - addresses:
      - ip: 172.19.x.x
    ports:
      - port: 1921

现在，可以在集群内使用简单的连接字符串访问数据库：

1	psql -U user_name -d database_name -h my-postgres.kong

URL方式

kind: Service
apiVersion: v1
metadata:
  name: my-postgres
  namespace: kong
spec:
  type: ExternalName
  externalName: pgm-uf6ja8np76k4vmdk168190.pg.rds.aliyuncs.com

现在，可以在集群内使用简单的连接字符串访问数据库：

# 测试是否引入成功
# curl my-postgres.kong:1921
curl: (52) Empty reply from server

# psql -U user_name -d database_name -h my-postgres.kong

创建连接的目的是我们可以使用serviceName连接数据库，通常我们会建议将db/es/redis/mq/等非k8s必须资源独立于k8s的集群外部署，降低k8s管理的复杂度；而这种独立在外部部署的资源建议添加一个k8s的endpoint/service指向来描述其调用地址，便于灵活管理及调用方便。

kong安装

[root@node001 kong]# cat allinone-kong.yaml
apiVersion: v1
kind: Namespace
metadata:
  name: kong
---
apiVersion: v1
kind: ConfigMap
metadata:
  name: filebeat-config
  namespace: kong
  labels:
    k8s-app: filebeat
    kubernetes.io/cluster-service: "true"
data:
  filebeat.yml: |-
    filebeat.inputs:
    - type: log
      enabled: true
      paths:
        - /data/access.log
      tags: ["k8s_access", "SG", "kong"]
    filebeat.config.modules:
      path: ${path.config}/modules.d/*.yml
      reload.enabled: false
    setup.template.settings:
      index.number_of_shards: 1

    processors:
      - add_cloud_metadata: ~

    output.logstash:
      hosts: ['${LOGSTASH_HOST:localhost}:${LOGSTASH_PORT:8888}']
    #  hosts: ["k8slogs.fxeyeinterface.com:8888"]
---
kind: Service
apiVersion: v1
metadata:
  name: my-postgres
  namespace: kong
spec:
  type: ExternalName
  externalName: pgm-xxxxxxxxxxxxx.pgsql.singapore.rds.aliyuncs.com
---
apiVersion: apiextensions.k8s.io/v1beta1
kind: CustomResourceDefinition
metadata:
  name: kongclusterplugins.configuration.konghq.com
spec:
  additionalPrinterColumns:
  - JSONPath: .plugin
    description: Name of the plugin
    name: Plugin-Type
    type: string
  - JSONPath: .metadata.creationTimestamp
    description: Age
    name: Age
    type: date
  - JSONPath: .disabled
    description: Indicates if the plugin is disabled
    name: Disabled
    priority: 1
    type: boolean
  - JSONPath: .config
    description: Configuration of the plugin
    name: Config
    priority: 1
    type: string
  group: configuration.konghq.com
  names:
    kind: KongClusterPlugin
    plural: kongclusterplugins
    shortNames:
    - kcp
  scope: Cluster
  subresources:
    status: {}
  validation:
    openAPIV3Schema:
      properties:
        config:
          type: object
        configFrom:
          properties:
            secretKeyRef:
              properties:
                key:
                  type: string
                name:
                  type: string
                namespace:
                  type: string
              required:
              - name
              - namespace
              - key
              type: object
          type: object
        disabled:
          type: boolean
        plugin:
          type: string
        protocols:
          items:
            enum:
            - http
            - https
            - grpc
            - grpcs
            - tcp
            - tls
            type: string
          type: array
        run_on:
          enum:
          - first
          - second
          - all
          type: string
      required:
      - plugin
  version: v1
---
apiVersion: apiextensions.k8s.io/v1beta1
kind: CustomResourceDefinition
metadata:
  name: kongconsumers.configuration.konghq.com
spec:
  additionalPrinterColumns:
  - JSONPath: .username
    description: Username of a Kong Consumer
    name: Username
    type: string
  - JSONPath: .metadata.creationTimestamp
    description: Age
    name: Age
    type: date
  group: configuration.konghq.com
  names:
    kind: KongConsumer
    plural: kongconsumers
    shortNames:
    - kc
  scope: Namespaced
  subresources:
    status: {}
  validation:
    openAPIV3Schema:
      properties:
        credentials:
          items:
            type: string
          type: array
        custom_id:
          type: string
        username:
          type: string
  version: v1
---
apiVersion: apiextensions.k8s.io/v1beta1
kind: CustomResourceDefinition
metadata:
  name: kongingresses.configuration.konghq.com
spec:
  group: configuration.konghq.com
  names:
    kind: KongIngress
    plural: kongingresses
    shortNames:
    - ki
  scope: Namespaced
  subresources:
    status: {}
  validation:
    openAPIV3Schema:
      properties:
        proxy:
          properties:
            connect_timeout:
              minimum: 0
              type: integer
            path:
              pattern: ^/.*$
              type: string
            protocol:
              enum:
              - http
              - https
              - grpc
              - grpcs
              - tcp
              - tls
              type: string
            read_timeout:
              minimum: 0
              type: integer
            retries:
              minimum: 0
              type: integer
            write_timeout:
              minimum: 0
              type: integer
          type: object
        route:
          properties:
            headers:
              additionalProperties:
                items:
                  type: string
                type: array
              type: object
            https_redirect_status_code:
              type: integer
            methods:
              items:
                type: string
              type: array
            path_handling:
              enum:
              - v0
              - v1
              type: string
            preserve_host:
              type: boolean
            protocols:
              items:
                enum:
                - http
                - https
                - grpc
                - grpcs
                - tcp
                - tls
                type: string
              type: array
            regex_priority:
              type: integer
            request_buffering:
              type: boolean
            response_buffering:
              type: boolean
            snis:
              items:
                type: string
              type: array
            strip_path:
              type: boolean
        upstream:
          properties:
            algorithm:
              enum:
              - round-robin
              - consistent-hashing
              - least-connections
              type: string
            hash_fallback:
              type: string
            hash_fallback_header:
              type: string
            hash_on:
              type: string
            hash_on_cookie:
              type: string
            hash_on_cookie_path:
              type: string
            hash_on_header:
              type: string
            healthchecks:
              properties:
                active:
                  properties:
                    concurrency:
                      minimum: 1
                      type: integer
                    healthy:
                      properties:
                        http_statuses:
                          items:
                            type: integer
                          type: array
                        interval:
                          minimum: 0
                          type: integer
                        successes:
                          minimum: 0
                          type: integer
                      type: object
                    http_path:
                      pattern: ^/.*$
                      type: string
                    timeout:
                      minimum: 0
                      type: integer
                    unhealthy:
                      properties:
                        http_failures:
                          minimum: 0
                          type: integer
                        http_statuses:
                          items:
                            type: integer
                          type: array
                        interval:
                          minimum: 0
                          type: integer
                        tcp_failures:
                          minimum: 0
                          type: integer
                        timeout:
                          minimum: 0
                          type: integer
                      type: object
                  type: object
                passive:
                  properties:
                    healthy:
                      properties:
                        http_statuses:
                          items:
                            type: integer
                          type: array
                        interval:
                          minimum: 0
                          type: integer
                        successes:
                          minimum: 0
                          type: integer
                      type: object
                    unhealthy:
                      properties:
                        http_failures:
                          minimum: 0
                          type: integer
                        http_statuses:
                          items:
                            type: integer
                          type: array
                        interval:
                          minimum: 0
                          type: integer
                        tcp_failures:
                          minimum: 0
                          type: integer
                        timeout:
                          minimum: 0
                          type: integer
                      type: object
                  type: object
                threshold:
                  type: integer
              type: object
            host_header:
              type: string
            slots:
              minimum: 10
              type: integer
          type: object
  version: v1
---
apiVersion: apiextensions.k8s.io/v1beta1
kind: CustomResourceDefinition
metadata:
  name: kongplugins.configuration.konghq.com
spec:
  additionalPrinterColumns:
  - JSONPath: .plugin
    description: Name of the plugin
    name: Plugin-Type
    type: string
  - JSONPath: .metadata.creationTimestamp
    description: Age
    name: Age
    type: date
  - JSONPath: .disabled
    description: Indicates if the plugin is disabled
    name: Disabled
    priority: 1
    type: boolean
  - JSONPath: .config
    description: Configuration of the plugin
    name: Config
    priority: 1
    type: string
  group: configuration.konghq.com
  names:
    kind: KongPlugin
    plural: kongplugins
    shortNames:
    - kp
  scope: Namespaced
  subresources:
    status: {}
  validation:
    openAPIV3Schema:
      properties:
        config:
          type: object
        configFrom:
          properties:
            secretKeyRef:
              properties:
                key:
                  type: string
                name:
                  type: string
              required:
              - name
              - key
              type: object
          type: object
        disabled:
          type: boolean
        plugin:
          type: string
        protocols:
          items:
            enum:
            - http
            - https
            - grpc
            - grpcs
            - tcp
            - tls
            type: string
          type: array
        run_on:
          enum:
          - first
          - second
          - all
          type: string
      required:
      - plugin
  version: v1
---
apiVersion: apiextensions.k8s.io/v1beta1
kind: CustomResourceDefinition
metadata:
  name: tcpingresses.configuration.konghq.com
spec:
  additionalPrinterColumns:
  - JSONPath: .status.loadBalancer.ingress[*].ip
    description: Address of the load balancer
    name: Address
    type: string
  - JSONPath: .metadata.creationTimestamp
    description: Age
    name: Age
    type: date
  group: configuration.konghq.com
  names:
    kind: TCPIngress
    plural: tcpingresses
  scope: Namespaced
  subresources:
    status: {}
  validation:
    openAPIV3Schema:
      properties:
        apiVersion:
          type: string
        kind:
          type: string
        metadata:
          type: object
        spec:
          properties:
            rules:
              items:
                properties:
                  backend:
                    properties:
                      serviceName:
                        type: string
                      servicePort:
                        format: int32
                        type: integer
                    type: object
                  host:
                    type: string
                  port:
                    format: int32
                    type: integer
                type: object
              type: array
            tls:
              items:
                properties:
                  hosts:
                    items:
                      type: string
                    type: array
                  secretName:
                    type: string
                type: object
              type: array
          type: object
        status:
          type: object
  version: v1beta1
status:
  acceptedNames:
    kind: ""
    plural: ""
  conditions: []
  storedVersions: []
---
apiVersion: v1
kind: ServiceAccount
metadata:
  name: kong-serviceaccount
  namespace: kong
---
apiVersion: rbac.authorization.k8s.io/v1beta1
kind: ClusterRole
metadata:
  name: kong-ingress-clusterrole
rules:
- apiGroups:
  - ""
  resources:
  - endpoints
  - nodes
  - pods
  - secrets
  verbs:
  - list
  - watch
- apiGroups:
  - ""
  resources:
  - nodes
  verbs:
  - get
- apiGroups:
  - ""
  resources:
  - services
  verbs:
  - get
  - list
  - watch
- apiGroups:
  - networking.k8s.io
  - extensions
  - networking.internal.knative.dev
  resources:
  - ingresses
  verbs:
  - get
  - list
  - watch
- apiGroups:
  - ""
  resources:
  - events
  verbs:
  - create
  - patch
- apiGroups:
  - networking.k8s.io
  - extensions
  - networking.internal.knative.dev
  resources:
  - ingresses/status
  verbs:
  - update
- apiGroups:
  - configuration.konghq.com
  resources:
  - tcpingresses/status
  verbs:
  - update
- apiGroups:
  - configuration.konghq.com
  resources:
  - kongplugins
  - kongclusterplugins
  - kongcredentials
  - kongconsumers
  - kongingresses
  - tcpingresses
  verbs:
  - get
  - list
  - watch
- apiGroups:
  - ""
  resources:
  - configmaps
  verbs:
  - create
  - get
  - update
---
apiVersion: rbac.authorization.k8s.io/v1beta1
kind: ClusterRoleBinding
metadata:
  name: kong-ingress-clusterrole-nisa-binding
roleRef:
  apiGroup: rbac.authorization.k8s.io
  kind: ClusterRole
  name: kong-ingress-clusterrole
subjects:
- kind: ServiceAccount
  name: kong-serviceaccount
  namespace: kong
---
apiVersion: v1
kind: Service
metadata:
  annotations:
    service.beta.kubernetes.io/aws-load-balancer-backend-protocol: tcp
    service.beta.kubernetes.io/aws-load-balancer-type: nlb
  name: kong-proxy
  namespace: kong
spec:
  ports:
  - name: proxy
    port: 80
    protocol: TCP
    targetPort: 8000
  - name: proxy-ssl
    port: 8443
    protocol: TCP
    targetPort: 8443
  - name: proxy-http2
    port: 8888
    protocol: TCP
    targetPort: 8888
  - name: proxy-http2-ssl
    port: 8844
    protocol: TCP
    targetPort: 8844
  - name: kong-admin
    port: 8001
    protocol: TCP
    targetPort: 8001
  - name: kong-admin-ssl
    port: 8444
    protocol: TCP
    targetPort: 8444
  selector:
    app: ingress-kong
  type: LoadBalancer
---
apiVersion: v1
kind: Service
metadata:
  name: kong-validation-webhook
  namespace: kong
spec:
  ports:
  - name: webhook
    port: 443
    protocol: TCP
    targetPort: 8080
  selector:
    app: ingress-kong
---
apiVersion: apps/v1
kind: Deployment
metadata:
  labels:
    app: ingress-kong
  name: ingress-kong
  namespace: kong
spec:
  replicas: 2
  selector:
    matchLabels:
      app: ingress-kong
  template:
    metadata:
      annotations:
        kuma.io/gateway: enabled
        prometheus.io/port: "8100"
        prometheus.io/scrape: "true"
        traffic.sidecar.istio.io/includeInboundPorts: ""
      labels:
        app: ingress-kong
    spec:
      volumes:
      - hostPath:
          path: /tmp
          type: DirectoryOrCreate
        name: konglogs
      - name: config
        configMap:
          defaultMode: 0444
          name: filebeat-config
      containers:
      - env:
        - name: LOGSTASH_HOST
          value: k8slogs.fxeyeinterface.com
        - name: LOGSTASH_PORT
          value: "8888"
        name: logscollection
        image: registry.cn-shanghai.aliyuncs.com/wikifx/base:filebeat-7.4.1
        args: [
          "-c", "/etc/filebeat.yml",
          "-e",
        ]
        imagePullPolicy: IfNotPresent
        resources:
          requests:
            memory: 100Mi
            cpu: 500m
          limits:
            memory: 1024Mi
            cpu: 2000m
        readinessProbe:
          exec:
            command:
            - ls
          initialDelaySeconds: 10
          periodSeconds: 15
          timeoutSeconds: 5
        volumeMounts:
          - name: konglogs
            mountPath: /data/
          - name: config
            mountPath: /etc/filebeat.yml
            readOnly: true
            subPath: filebeat.yml
      - env:
        - name: KONG_DATABASE
          value: postgres
        - name: KONG_PG_HOST
          value: my-postgres.kong
        - name: KONG_PG_PASSWORD
          value: Abc123@@
        - name: KONG_PG_PORT
          value: "1921"
        - name: KONG_PROXY_LISTEN
          value: 0.0.0.0:8000, 0.0.0.0:8443 ssl, 0.0.0.0:8888 http2, 0.0.0.0:8844 ssl http2
        - name: KONG_PORT_MAPS
          value: 80:8000, 443:8443
        - name: KONG_ADMIN_LISTEN
          value: 0.0.0.0:8001,0.0.0.0:8444 ssl #修改
        - name: KONG_STATUS_LISTEN
          value: 0.0.0.0:8100
        - name: KONG_NGINX_WORKER_PROCESSES
          value: "2"
        - name: KONG_ADMIN_ACCESS_LOG
          value: /dev/stdout
        - name: KONG_ADMIN_ERROR_LOG
          value: /dev/stderr
        - name: KONG_PROXY_ERROR_LOG
          value: /dev/stderr
        - name: KONG_PROXY_ACCESS_LOG
          value: /tmp/access.log custom_fmt
        - name: KONG_NGINX_HTTP_LOG_FORMAT
#          value: custom_fmt '$remote_addr - $remote_user [$time_local] "$request" $http_host $status $body_bytes_sent "$http_referer" "$http_user_agent" "$http_x_forwarded_for" $upstream_addr $upstream_status $upstream_cache_status "$upstream_http_content_type" $upstream_response_time > $request_time'
          value: custom_fmt '$remote_addr - $remote_user [$time_local] "$request" $http_host $status $body_bytes_sent "$http_referer" "$http_user_agent" "$http_x_forwarded_for" "$upstream_addr" "$upstream_status" $upstream_cache_status "$upstream_http_content_type" "$upstream_response_time" > $request_time'
        image: registry.cn-shanghai.aliyuncs.com/wikifx/kong:kong-2.5
        lifecycle:
          postStart:
            exec:
              command:
                - /bin/bash
                - '-c'
                - '> /tmp/access.log'
          preStop:
            exec:
              command:
                - /bin/bash
                - '-c'
                - 'kong quit;'
        livenessProbe:
          failureThreshold: 3
          httpGet:
            path: /status
            port: 8100
            scheme: HTTP
          initialDelaySeconds: 5
          periodSeconds: 10
          successThreshold: 1
          timeoutSeconds: 1
        name: proxy
        volumeMounts:
        - mountPath: /tmp
          name: konglogs
        ports:
        - containerPort: 8000
          name: proxy
          protocol: TCP
        - containerPort: 8844
          name: proxy-http2-ssl
          protocol: TCP
        - containerPort: 8443
          name: proxy-ssl
          protocol: TCP
        - containerPort: 8100
          name: metrics
          protocol: TCP
        - containerPort: 8444
          name: kong-admin-ssl
          protocol: TCP
        - containerPort: 8888
          name: kong-http2
          protocol: TCP
        - containerPort: 8844
          name: kong-http2-ssl
          protocol: TCP
        - containerPort: 8001
          name: kong-admin
          protocol: TCP
        readinessProbe:
          failureThreshold: 3
          httpGet:
            path: /status
            port: 8100
            scheme: HTTP
          initialDelaySeconds: 5
          periodSeconds: 10
          successThreshold: 1
          timeoutSeconds: 1
      - env:
        - name: CONTROLLER_KONG_ADMIN_URL
          value: https://127.0.0.1:8444
        - name: CONTROLLER_KONG_ADMIN_TLS_SKIP_VERIFY
          value: "true"
        - name: CONTROLLER_PUBLISH_SERVICE
          value: kong/kong-proxy
        - name: POD_NAME
          valueFrom:
            fieldRef:
              apiVersion: v1
              fieldPath: metadata.name
        - name: POD_NAMESPACE
          valueFrom:
            fieldRef:
              apiVersion: v1
              fieldPath: metadata.namespace
        image: registry.cn-shanghai.aliyuncs.com/wikifx/kong:kubernetes-ingress-controller-1.3
        imagePullPolicy: IfNotPresent
        livenessProbe:
          failureThreshold: 3
          httpGet:
            path: /healthz
            port: 10254
            scheme: HTTP
          initialDelaySeconds: 5
          periodSeconds: 10
          successThreshold: 1
          timeoutSeconds: 1
        name: ingress-controller
        ports:
        - containerPort: 8080
          name: webhook
          protocol: TCP
        readinessProbe:
          failureThreshold: 3
          httpGet:
            path: /healthz
            port: 10254
            scheme: HTTP
          initialDelaySeconds: 5
          periodSeconds: 10
          successThreshold: 1
          timeoutSeconds: 1
      initContainers:
      - command:
        - /bin/sh
        - -c
        - while true; do kong migrations list; if [[ 0 -eq $? ]]; then exit 0; fi;
          sleep 2;  done;
        env:
        - name: KONG_PG_HOST
          value: my-postgres.kong
        - name: KONG_PG_PASSWORD
          value: Abc123@@
        - name: KONG_PG_PORT
          value: "1921"
        image: registry.cn-shanghai.aliyuncs.com/wikifx/kong:kong-2.5
        name: wait-for-migrations
      serviceAccountName: kong-serviceaccount
---
apiVersion: batch/v1
kind: Job
metadata:
  name: kong-migrations
  namespace: kong
spec:
  template:
    metadata:
      name: kong-migrations
    spec:
      containers:
      - command:
        - /bin/sh
        - -c
        - kong migrations bootstrap
        env:
        - name: KONG_PG_PASSWORD
          value: Abc123@@
        - name: KONG_PG_HOST
          value: my-postgres.kong
        - name: KONG_PG_PORT
          value: "1921"
        image: registry.cn-shanghai.aliyuncs.com/wikifx/kong:kong-2.5
        name: kong-migrations
      initContainers:
      - command:
        - /bin/sh
        - -c
        - until nc -zv $KONG_PG_HOST $KONG_PG_PORT -w1; do echo 'waiting for db';
          sleep 1; done
        env:
        - name: KONG_PG_HOST
          value: my-postgres.kong
        - name: KONG_PG_PORT
          value: "1921"
        image: busybox
        name: wait-for-postgres
      restartPolicy: OnFailure

上面的YAML需要注意修改PG的外部地址和端口，以及kong环境变量和PG配置一致

安装konga管理UI

Kong 企业版提供了管理UI，开源版本是没有的。但是有很多的开源的管理 UI ，其中比较好用的是Konga。
项目地址：https://github.com/pantsel/konga

Konga 特性

Konga 主要是用 AngularJS 写的，运行于nodejs服务端。具有以下特性：

管理所有Kong Admin API对象。
支持从远程源（数据库，文件，API等）导入使用者。
管理多个Kong节点。使用快照备份，还原和迁移Kong节点。
使用运行状况检查监视节点和API状态。
支持电子邮件和闲置通知。
支持多用户。
易于数据库集成（MySQL，postgresSQL，MongoDB，SQL Server）。

安装konga

konga提供了自己的持久化机制来存储它的用户信息和配置信息，支持的数据库包括MySQL、MongoDB、PostgresSQL，可通过DB_ADAPTER等环境变量指定。这里使用的是外部的MySQL数据库。下面分别在k8s上创建如下konga的deployment、service和ingress。

---
apiVersion: apps/v1
kind: Deployment
metadata:
  name: kong-konga
  namespace: kong
spec:
  selector:
    matchLabels:
      app: kong-konga
  replicas: 1
  template:
    metadata:
      labels:
        app: kong-konga
    spec:
      initContainers:
      - name: dbmigration
        image: pantsel/konga
        command:
        - node
        - /app/bin/konga.js
        - prepare
        - --adapter
        - mysql
        - --uri
        - mysql://wikifx:Wikifx123@rm-uf6458d05c7fhmo7w90110.mysql.rds.aliyuncs.com:3306/kongadb
      containers:
      - name: kong-konga
        image: pantsel/konga:0.14.9
        imagePullPolicy: IfNotPresent
        env:
#        - name: DB_ADAPTER
#          value: postgres
#        - name: DB_HOST
#        #服务名.命名空间
#          value: my-postgres.kong
#        - name: DB_PORT
#          value: "1921"
#        - name: DB_USER
#          value: kong
#        - name: DB_DATABASE
#          value: konga
#        - name: DB_PASSWORD
#          value: "Abc123@@"  #注意修改
        - name: DB_ADAPTER
          value: mysql
        - name: DB_URI
          value: mysql://wikifx:Wikifx123@rm-uf6458d05c7fhmo7w90110.mysql.rds.aliyuncs.com:3306/kongadb
        - name: NODE_ENV
          #value: production
          value: development
        - name: TZ
          value: Asia/Shanghai
        ports:
        - containerPort: 1337
---
#service
apiVersion: v1
kind: Service
metadata:
  name: kong-konga
  namespace: kong
spec:
  ports:
  - port: 80
    protocol: TCP
    targetPort: 1337
    nodePort: 32222
  type: NodePort
  selector:
    app: kong-konga

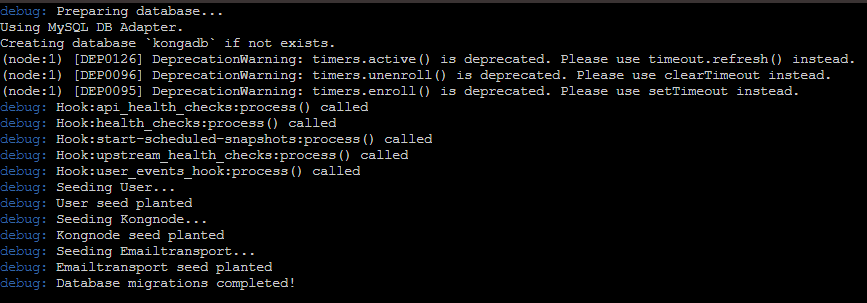

初始化数据

kong

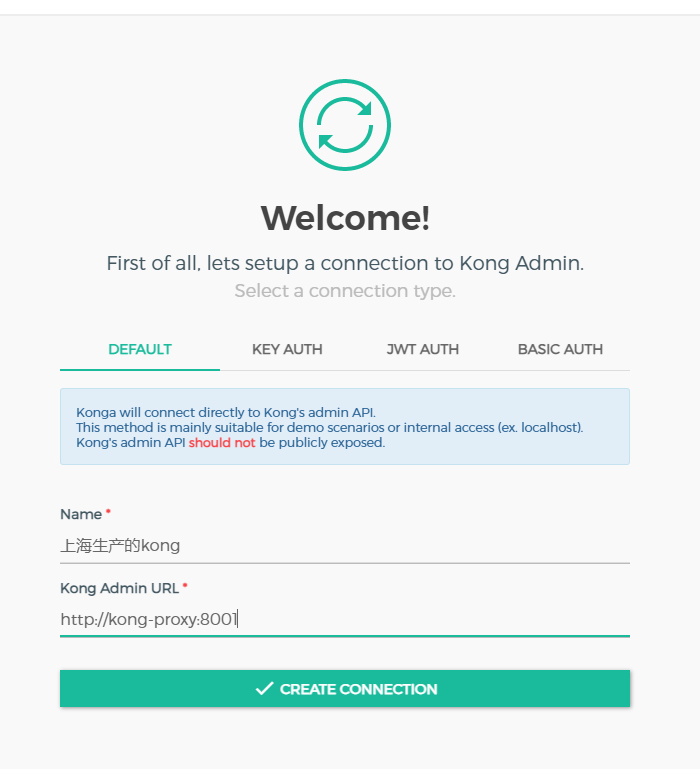

管理员用户创建完成后，就可以登录到konga中，之后出现创建konga到kong admin api连接的页面，在连接创建页面填入如下图所示内容:

upload successful

Prometheus 监控 Kong

参见: https://cakepanit.com/forward/dc57d8c5.html

apiVersion: monitoring.coreos.com/v1
kind: ServiceMonitor
metadata:
  labels:
    app: kong
  name: kong-ingress-scraping
  namespace: kong
spec:
  endpoints:
  - interval: 30s
    path: /metrics
    port: http-metrics
  jobLabel: app
  namespaceSelector:
    matchNames:
    - kong
  selector:
    matchLabels:
      k8s-app: kong-metrics
---
apiVersion: v1
kind: Service
metadata:
  annotations: {}
  labels:
    k8s-app: kong-metrics
  name: kong-metrics
  namespace: kong
spec:
  clusterIP: None
  ports:
    - name: http-metrics
      port: 8100
      protocol: TCP
      targetPort: 8100
  selector:
    app: ingress-kong
  type: ClusterIP

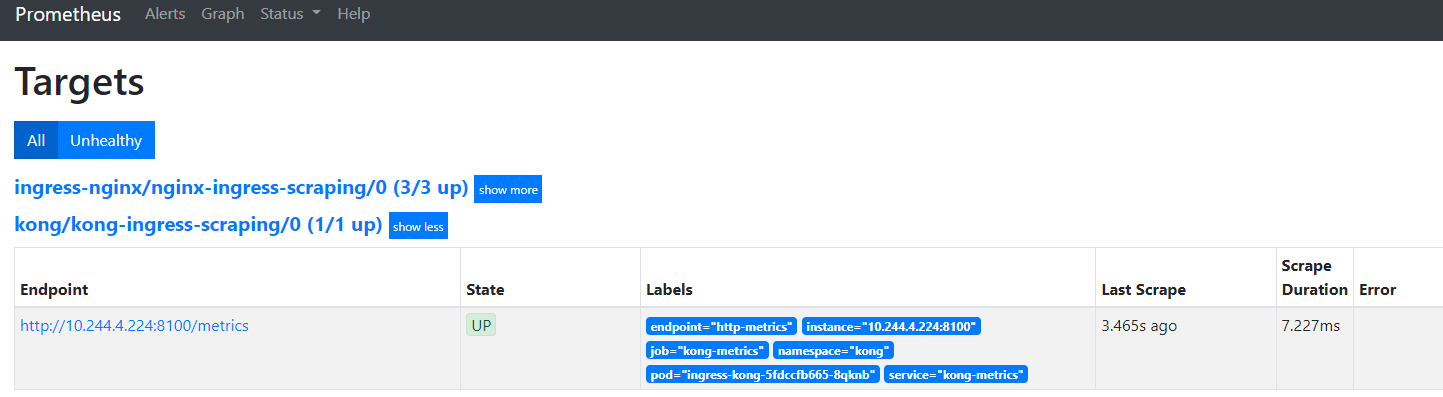

Prometheus
