下载filebeat

1
2
wget https://artifacts.elastic.co/downloads/beats/filebeat/filebeat-7.4.0-linux-x86_64.tar.gz
tar -xf filebeat-7.4.0-linux-x86_64.tar.gz

制作filebeat镜像

1
2
3
4
5
6
7
8
9
10
cat filebeat-7.4.0-linux-x86_64/dockerfile
FROM registry.cn-shanghai.aliyuncs.com/wikifx/base:alpine-glibc-Shanghai

WORKDIR /app

COPY . .

RUN chmod +x  filebeat

ENTRYPOINT ["/app/filebeat", "-e", "-path.home", "./", "-path.data", "./data"]

编排文件编写

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
apiVersion: v1
kind: Namespace
metadata:
  name: ops
---
apiVersion: v1
kind: ConfigMap
metadata:
  name: filebeat-config
  namespace: ops
  labels:
    k8s-app: filebeat
    kubernetes.io/cluster-service: "true"
data:
  filebeat.yml: |-
    filebeat.inputs:
    - type: log
      enabled: true
      paths:
        - /var/applogs/*/*.log
      tags: ["k8s_applogs", "SH"]
      multiline.pattern: '^[0-9]{4}-[0-9]{2}-[0-9]{2}'
      multiline.negate: true
      multiline.match: after
      tail_files: true

    filebeat.config.modules:
      path: ${path.config}/modules.d/*.yml
      reload.enabled: false

    setup.template.settings:
      index.number_of_shards: 1

    output.logstash:
      hosts: ["172.19.111.144:8080"]

    processors:
      - add_host_metadata:
            netinfo.enabled: true
            cache.ttl: 5m

---
apiVersion: apps/v1
kind: DaemonSet
metadata:
  labels:
    app: logscollection
  name: logscollection
  namespace: ops
spec:
  selector:
    matchLabels:
      app: logscollection
  template:
    metadata:
      labels:
        app: logscollection
    spec:
      containers:
      - args: [
      	"-c", "/etc/filebeat.yml"
      ]
        image: registry.cn-shanghai.aliyuncs.com/wikifx/base:logscollection-public
        name: logscollection-public
        resources:
          limits:
            cpu: 500m
            memory: 500Mi
          requests:
            cpu: 10m
            memory: 100Mi
        volumeMounts:
          - name: config
            mountPath: /etc/filebeat.yml
            readOnly: true
            subPath: filebeat.yml
          - name: applogs
            mountPath: /var/applogs
      volumes:
      - name: config
        configMap:
          defaultMode: 0444
          name: filebeat-config
      - hostPath:
          path: /var/applogs
          type: DirectoryOrCreate
        name: applogs

安装执行

1
2
3
4
[root@node002 DaemonSet]# kubectl apply -f logscollection
namespace/ops created
configmap/filebeat-config created
daemonset.apps/logscollection created

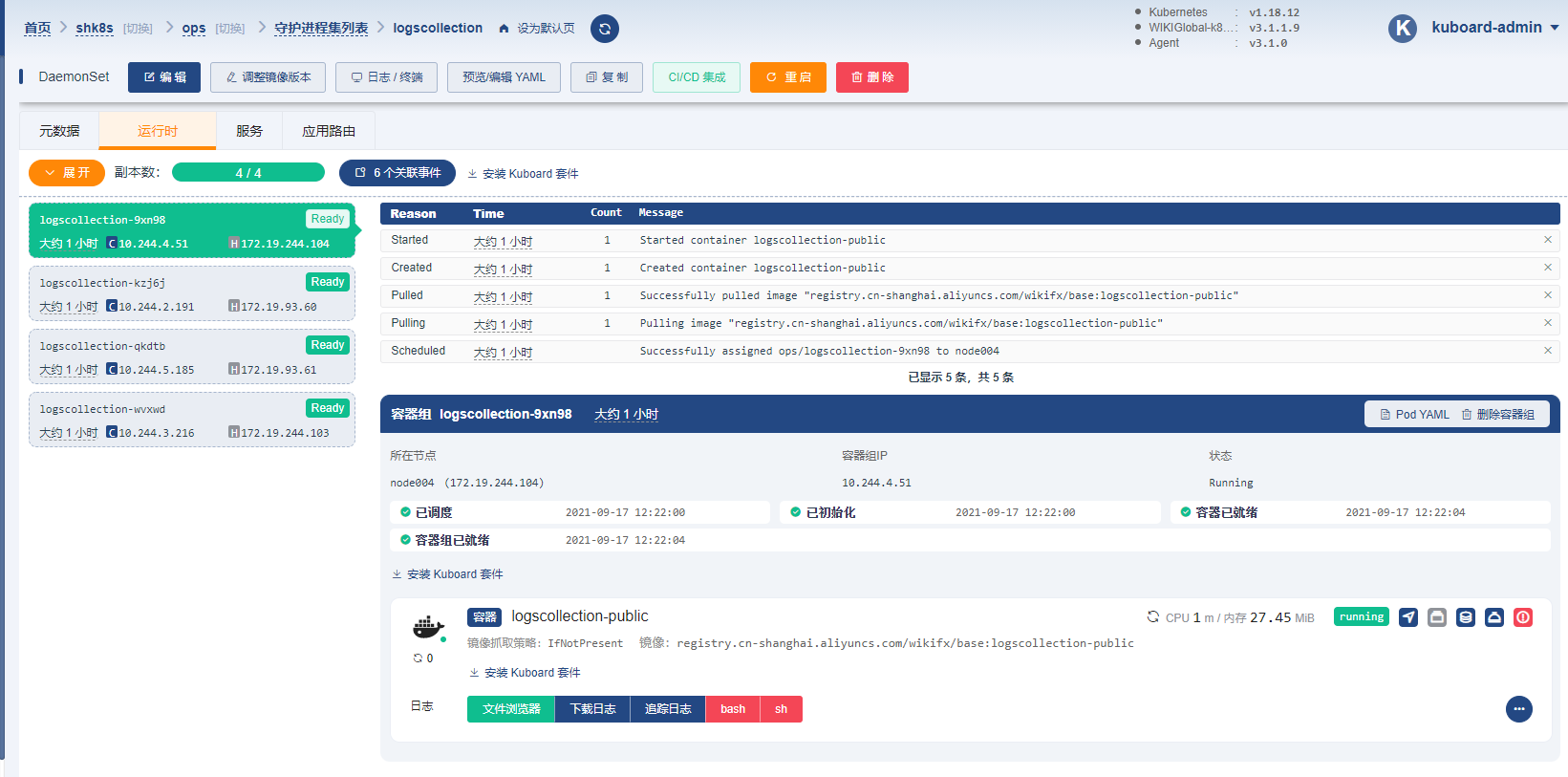

install

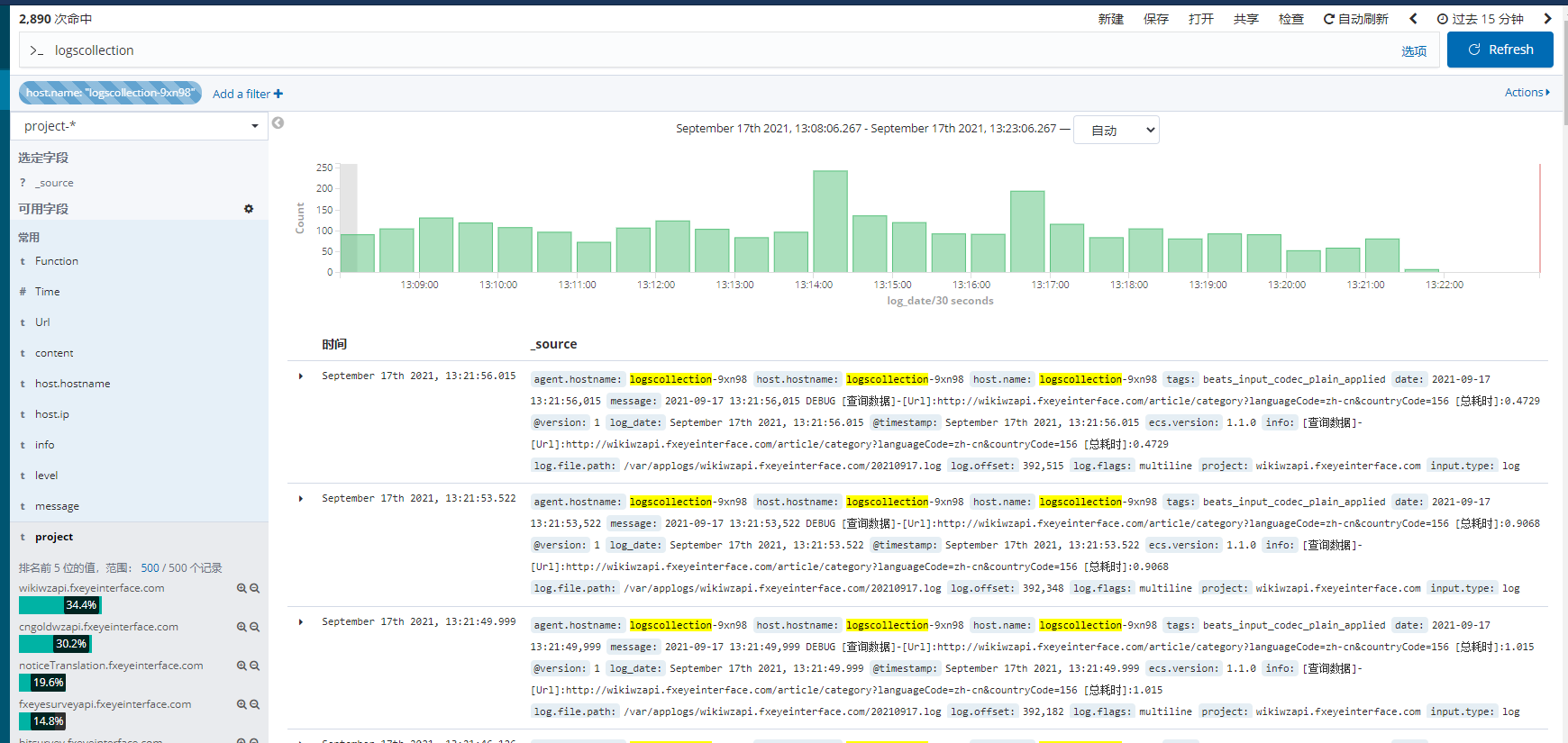

result
