1.GTID

思考问题?下面怎么恢复?

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
#1.
create database binlog charset utf8mb4;
#2.
use binlog;
create table t1(id int);
#3.
insert into t1 values(1);
commit;
insert into t1 values(2);
commit;

truncate table t1;

insert into t1 values(3);
commit;
#4.
drop database binlog;

原因:基于position号恢复需要多次截取,找起点和终点过程很复杂。

1.2什么是GTID(全局事务编号)

5.6 版本新加的特性,5.7中做了加强
5.6 中不开启,没有这个功能.
5.7 中的GTID,即使不开也会有自动生成
SET @@SESSION.GTID_NEXT= ‘ANONYMOUS’ //匿名的GTID。用于系统自身维护

是对于一个已提交事务的编号,并且是一个全局唯一连续的编号。
它的官方定义如下:
GTID = source_id :transaction_id
7E11FA47-31CA-19E1-9E56-C43AA21293967:29

  • UUID:事务编号
    UUID存放路径:
    1
    2
    3
    [root@db01 ~]# cat /data/3307/data/auto.cnf //数据库初始化完成后,自动生成
    [auto]
    server-uuid=cca7bb3f-687e-11ea-b0d9-0800273e0795
    说明:
    DDL DCL,一条语句(事件)就是一个事务,占一个GTID号
    DML:一个完整的事务(begin–》commit),是一个事务,占一个GTID号

1.3开启GTID

1
2
3
4
vim /etc/my.cnf
gtid-mode=on
enforce-gtid-consistency=true
systemctl restart mysqld

1.4查看GTID

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
mysql> show master status;
+------------------+----------+--------------+------------------+-------------------+
| File | Position | Binlog_Do_DB | Binlog_Ignore_DB | Executed_Gtid_Set |
+------------------+----------+--------------+------------------+-------------------+
| mysql-bin.000008 | 154 | | | |
+------------------+----------+--------------+------------------+-------------------+
1 row in set (0.00 sec)

mysql> create database ff;
Query OK, 1 row affected (0.00 sec)

mysql> show master status;
+------------------+----------+--------------+------------------+----------------------------------------+
| File | Position | Binlog_Do_DB | Binlog_Ignore_DB | Executed_Gtid_Set //存放gtid |
+------------------+----------+--------------+------------------+----------------------------------------+
| mysql-bin.000008 | 307 | | | cca7bb3f-687e-11ea-b0d9-0800273e0795:1 |
+------------------+----------+--------------+------------------+----------------------------------------+

模拟被删库,如何恢复数据

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
mysql> use ff;
mysql> create table pincheng.org (id int);
mysql> insert into pincheng.org values(1);
mysql> commit;
mysql> insert into pincheng.org values(2);
mysql> commit;
mysql> insert into pincheng.org values(3);
mysql> commit;
mysql> insert into pincheng.org values(4);
mysql> commit;
mysql> insert into pincheng.org values(5);
mysql> commit;
mysql> show master status;
+------------------+----------+--------------+------------------+------------------------------------------+
| File | Position | Binlog_Do_DB | Binlog_Ignore_DB | Executed_Gtid_Set |
+------------------+----------+--------------+------------------+------------------------------------------+
| mysql-bin.000008 | 1771 | | | cca7bb3f-687e-11ea-b0d9-0800273e0795:1-7 |
+------------------+----------+--------------+------------------+------------------------------------------+

1.5基于GTDI截取

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
mysql> drop database ff;
mysql> show master status;
+------------------+----------+--------------+------------------+------------------------------------------+
| File | Position | Binlog_Do_DB | Binlog_Ignore_DB | Executed_Gtid_Set |
+------------------+----------+--------------+------------------+------------------------------------------+
| mysql-bin.000008 | 1922 | | | cca7bb3f-687e-11ea-b0d9-0800273e0795:1-8 |
+------------------+----------+--------------+------------------+------------------------------------------+
1 row in set (0.00 sec)

mysql> show binlog events in 'mysql-bin.000008';
+------------------+------+----------------+-----------+-------------+-------------------------------------------------------------------+
| Log_name | Pos | Event_type | Server_id | End_log_pos | Info |
+------------------+------+----------------+-----------+-------------+-------------------------------------------------------------------+
| mysql-bin.000008 | 4 | Format_desc | 7 | 123 | Server ver: 5.7.26-log, Binlog ver: 4 |
| mysql-bin.000008 | 123 | Previous_gtids | 7 | 154 | |
| mysql-bin.000008 | 154 | Gtid | 7 | 219 | SET @@SESSION.GTID_NEXT= 'cca7bb3f-687e-11ea-b0d9-0800273e0795:1' | //建库
| mysql-bin.000008 | 219 | Query | 7 | 307 | create database ff |
| mysql-bin.000008 | 307 | Gtid | 7 | 372 | SET @@SESSION.GTID_NEXT= 'cca7bb3f-687e-11ea-b0d9-0800273e0795:2' | //建表
| mysql-bin.000008 | 372 | Query | 7 | 476 | use `ff`; create table pincheng.org (id int) |
| mysql-bin.000008 | 476 | Gtid | 7 | 541 | SET @@SESSION.GTID_NEXT= 'cca7bb3f-687e-11ea-b0d9-0800273e0795:3' | //插入数据
| mysql-bin.000008 | 541 | Query | 7 | 611 | BEGIN |
| mysql-bin.000008 | 611 | Table_map | 7 | 664 | table_id: 110 (ff.pincheng.org) |
| mysql-bin.000008 | 664 | Write_rows | 7 | 704 | table_id: 110 flags: STMT_END_F |
| mysql-bin.000008 | 704 | Xid | 7 | 735 | COMMIT /* xid=16 */ |
| mysql-bin.000008 | 735 | Gtid | 7 | 800 | SET @@SESSION.GTID_NEXT= 'cca7bb3f-687e-11ea-b0d9-0800273e0795:4' |
| mysql-bin.000008 | 800 | Query | 7 | 870 | BEGIN |
| mysql-bin.000008 | 870 | Table_map | 7 | 923 | table_id: 110 (ff.pincheng.org) |
| mysql-bin.000008 | 923 | Write_rows | 7 | 963 | table_id: 110 flags: STMT_END_F |
| mysql-bin.000008 | 963 | Xid | 7 | 994 | COMMIT /* xid=18 */ |
| mysql-bin.000008 | 994 | Gtid | 7 | 1059 | SET @@SESSION.GTID_NEXT= 'cca7bb3f-687e-11ea-b0d9-0800273e0795:5' |
| mysql-bin.000008 | 1059 | Query | 7 | 1129 | BEGIN |
| mysql-bin.000008 | 1129 | Table_map | 7 | 1182 | table_id: 110 (ff.pincheng.org) |
| mysql-bin.000008 | 1182 | Write_rows | 7 | 1222 | table_id: 110 flags: STMT_END_F |
| mysql-bin.000008 | 1222 | Xid | 7 | 1253 | COMMIT /* xid=20 */ |
| mysql-bin.000008 | 1253 | Gtid | 7 | 1318 | SET @@SESSION.GTID_NEXT= 'cca7bb3f-687e-11ea-b0d9-0800273e0795:6' |
| mysql-bin.000008 | 1318 | Query | 7 | 1388 | BEGIN |
| mysql-bin.000008 | 1388 | Table_map | 7 | 1441 | table_id: 110 (ff.pincheng.org) |
| mysql-bin.000008 | 1441 | Write_rows | 7 | 1481 | table_id: 110 flags: STMT_END_F |
| mysql-bin.000008 | 1481 | Xid | 7 | 1512 | COMMIT /* xid=22 */ |
| mysql-bin.000008 | 1512 | Gtid | 7 | 1577 | SET @@SESSION.GTID_NEXT= 'cca7bb3f-687e-11ea-b0d9-0800273e0795:7' | //插入数据
| mysql-bin.000008 | 1577 | Query | 7 | 1647 | BEGIN |
| mysql-bin.000008 | 1647 | Table_map | 7 | 1700 | table_id: 110 (ff.pincheng.org) |
| mysql-bin.000008 | 1700 | Write_rows | 7 | 1740 | table_id: 110 flags: STMT_END_F |
| mysql-bin.000008 | 1740 | Xid | 7 | 1771 | COMMIT /* xid=24 */ |
| mysql-bin.000008 | 1771 | Gtid | 7 | 1836 | SET @@SESSION.GTID_NEXT= 'cca7bb3f-687e-11ea-b0d9-0800273e0795:8' | //删库
| mysql-bin.000008 | 1836 | Query | 7 | 1922 | drop database ff |
+------------------+------+----------------+-----------+-------------+-------------------------------------------------------------------+
1.5.1错误截取方法:
1
[root@db01 ~]# mysqlbinlog --include-gtids='cca7bb3f-687e-11ea-b0d9-0800273e0795:1-7' /data/3307/mysql-bin.000008 >/tmp/gtid.sql

注意:以上截取方法不可在本机直接恢复。「在其他机器上可直接恢复」
原因:GTID具备幂等性,即在恢复通过GTID截取导出的二进制文件时,GTID会对比本地二进制文件中是否存在相同操作,若存在则跳过重复执行「GTID误认为次操作为重复劳动故不执行」。

1.5.2正确截取方法:
1
2
3
4
5
[root@db01 ~]# mysqlbinlog --skip-gtids --include-gtids='cca7bb3f-687e-11ea-b0d9-0800273e0795:1-7' /data/3307/mysql-bin.000008 >/tmp/gtids.sql
--skip-gtids //再次恢复时跳过GTID幂等检查
恢复:
mysql> set sql_log_bin=0; #关闭当前回话的binlog记录
mysql> source /tmp/gtids.sql

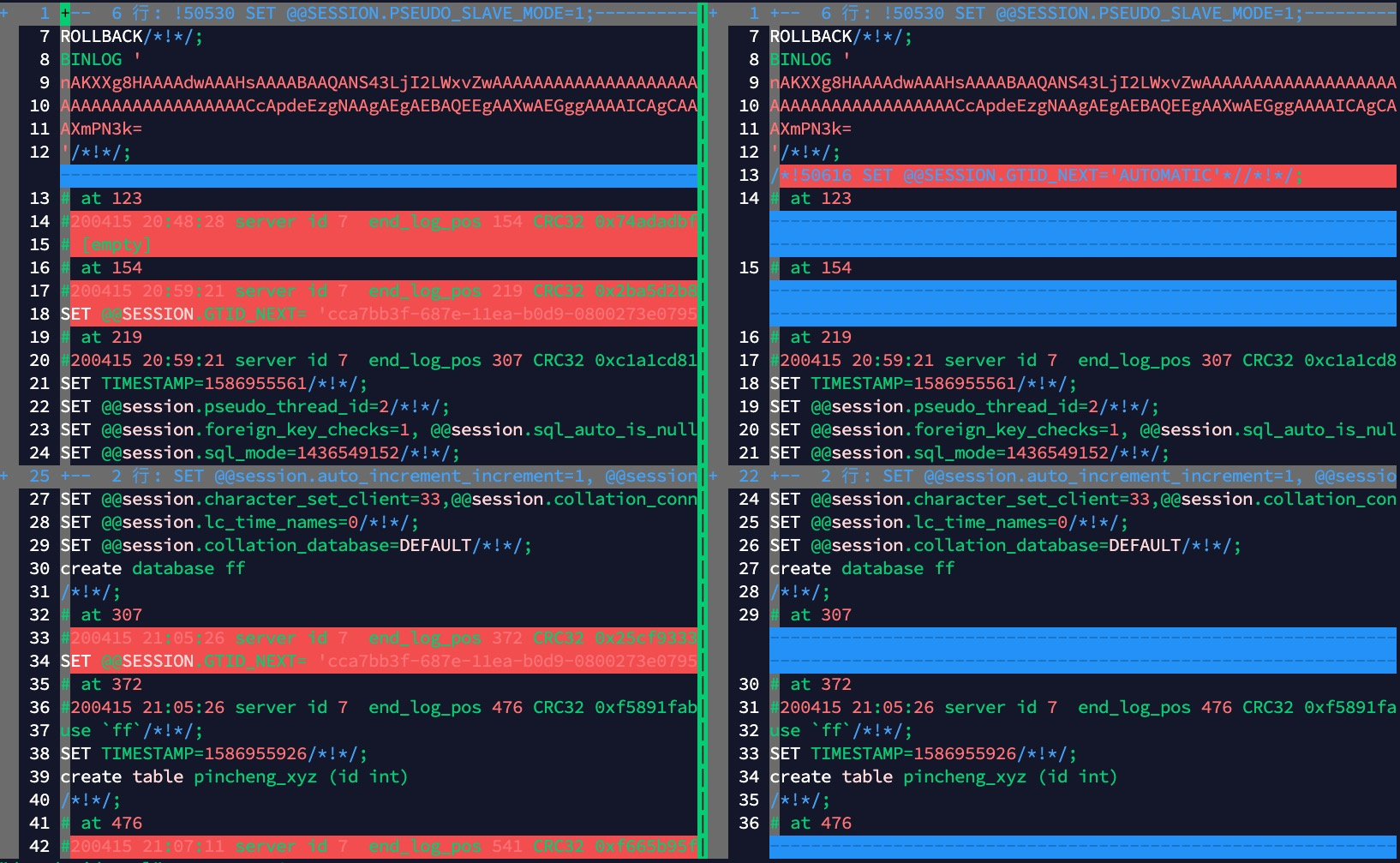

1.5.3:5.2对比5.1:

5.2对比5.1

1.5.4跳过某些GTID不截取
1
2
[root@db01 ~]# mysqlbinlog --skip-gtids --include-gtids='cca7bb3f-687e-11ea-b0d9-0800273e0795:1-7'--exclude-gtids='cca7bb3f-687e-11ea-b0d9-0800273e0795:3,cca7bb3f-687e-11ea-b0d9-0800273e0795:4-6' /data/3307/mysql-bin.000008 >/tmp/gtids.sql
--exclude-gtids='cca7bb3f-687e-11ea-b0d9-0800273e0795:3' //跳过指定GTID截取binlog
1
2
3
4
从全备获取获取单库的备份
# sed -n '/^-- Current Database: `world`/,/^-- Current Database: `/p' all.sql >world.sql
只截取db1库的二进制日志
# mysqlbinlog -d db1 --stop-position=974 /data/mysql/mysql-bin.000003 >/tmp/part.sql

2.二进制日志使用场景

  • 二进制日志一般是配合定期全备,恢复生产中的数据。
  • 主从复制架构依赖于二进制日志

2.2 二进制日志其他操作

2.2.1临时关闭

set sql_log_bin=0;
说明:

  • 临时关闭二进制日志记录,退出mysql窗口可以恢复
  • 做数据恢复之前,使用以上参数
2.2.2自动清理

参数:
mysql> select @@expire_logs_days;

自动清理设置依据:至少是一个全备周期+1,企业建议至少2个全备周期+1

怎么设置:

1
2
3
4
mysql> set global expire_logs_days=8; //临时设置,重启失效

vim /etc/my.cnf
expire_logs_days=8 //永久设置,重启生效
2.2.3手工清理

PURGE BINARY LOGS BEFORE now() - INTERVAL 3 day; //删除从现在开始三天之前的二进制日志
PURGE BINARY LOGS TO 'mysql-bin.000003'; //删除到哪里为止
以上操作不会重置二进制日志号码。

注意:不要手工 rm binlog文件,误杀binlog日志文件处理过程:

  1. my.cnf binlog关闭掉,启动数据库
  2. 把数据库关闭,开启binlog,启动数据库
    删除所有binlog,并从000001开始重新记录日志

删除所有binlog,从000001开始(危险!!!!)
mysql> reset master; //断开业务,静止数据。主从环境下执行,主从则需要重新构建。最好是全备之后再执行。

2.2.4日志滚动
  • 重启数据库
  • flush logs
  • mysqladmin -uroot -p flush-logs
  • show variables like ‘%max_binlog_size%’; //日志默认大小,默认1G滚动
  • 备份加一些参数,会触发滚动日志
